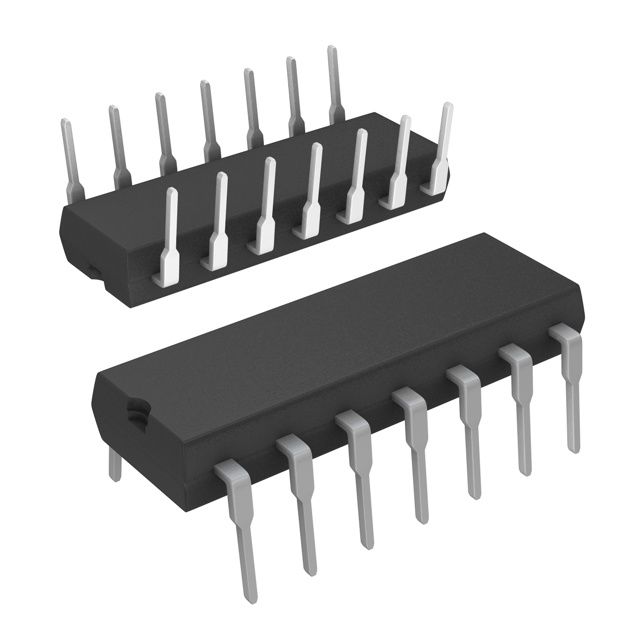

AD813ANZ
Opis:
AD813ANZ datasheet pdf and Linear - Amplifiers - Video Amps and Modules product details from Linear Technology (Analog Devices, Inc.) stock available at Rozee
Kategoria:
Obwody zintegrowane
Specyfikacje
Part Number:
AD813ANZ
Manufacturer:
Linear Technology (Analog Devices, Inc.)
Description:
In stock. Alternative models available.
Lifecycle:
New from this manufacturer
Delivery:
DHL、UPS、FedEx、Registered Mail
Payment:
T/T Paypal Visa Western Union
More Information:
AD813ANZ More Information
ECAD:
Request Free CAD Models
Pricing(USD):
$14.91
Remark:
Manufacturer: Linear Technology (Analog Devices, Inc.).
Rozee is one of the Distributors.
Wide range of applications.
Width:
7.11 mm
Length:
20.19 mm
Packaging:
Rail/Tube
Schedule B:
8542330000
Case/Package:
N
Settling Time:
40 ns
Number of Pins:
14
Contact Plating:
Tin
Power Dissipation:
1.6 W
Input Bias Current:
500 nA
Min Supply Voltage:
2.4 V
Number of Circuits:
3
Dual Supply Voltage:
15 V
Max Power Dissipation:
1.6 W
Max Dual Supply Voltage:
18 V
Operating Supply Current:
16.5 mA
Min Operating Temperature:
-55 °C
Output Current per Channel:
50 mA
Power Supply Rejection Ratio (PSRR):
80 dB
Products Category:
Integrated Circuits (ICs) - Linear - Amplifiers - Video Amps and Modules
Qty:
8764 In Stock
Applications:
Tablets
Lighting
Height:
4.95 mm
Bandwidth:
125 MHz
Slew Rate:
500 V/µs
Supply Type:
Dual, Single
Voltage Gain:
70 dB
-3db Bandwidth:
100 MHz
Output Current:
50 mA
Input Capacitance:
1.7 pF
Quiescent Current:
5.5 mA
Max Supply Voltage:
36 V
Number of Channels:
3
Number of Elements:
3
Number of Amplifiers:
3
Nominal Supply Current:
16.5 mA
Min Dual Supply Voltage:
1.2 V
Max Operating Temperature:
125 °C
Input Offset Voltage (Vos):
2 mV
Common Mode Rejection Ratio:
62 dB
Numer modelu:
AD813ANZ
Wprowadzenie
AD813ANZ Overview\\\\nAD813ANZ is a model belonging to the Linear - Amplifiers - Video Amps and Modules subcategory under Integrated Circuits (ICs). For specific product performance parameters, please refer to the data sheet, such as PDF files Docx documents, etc. We have AD813ANZ high-definition pictures and data sheets for reference. We will continue to produce various video files and 3D models for users to understand our product more intuitively and comprehensively.
